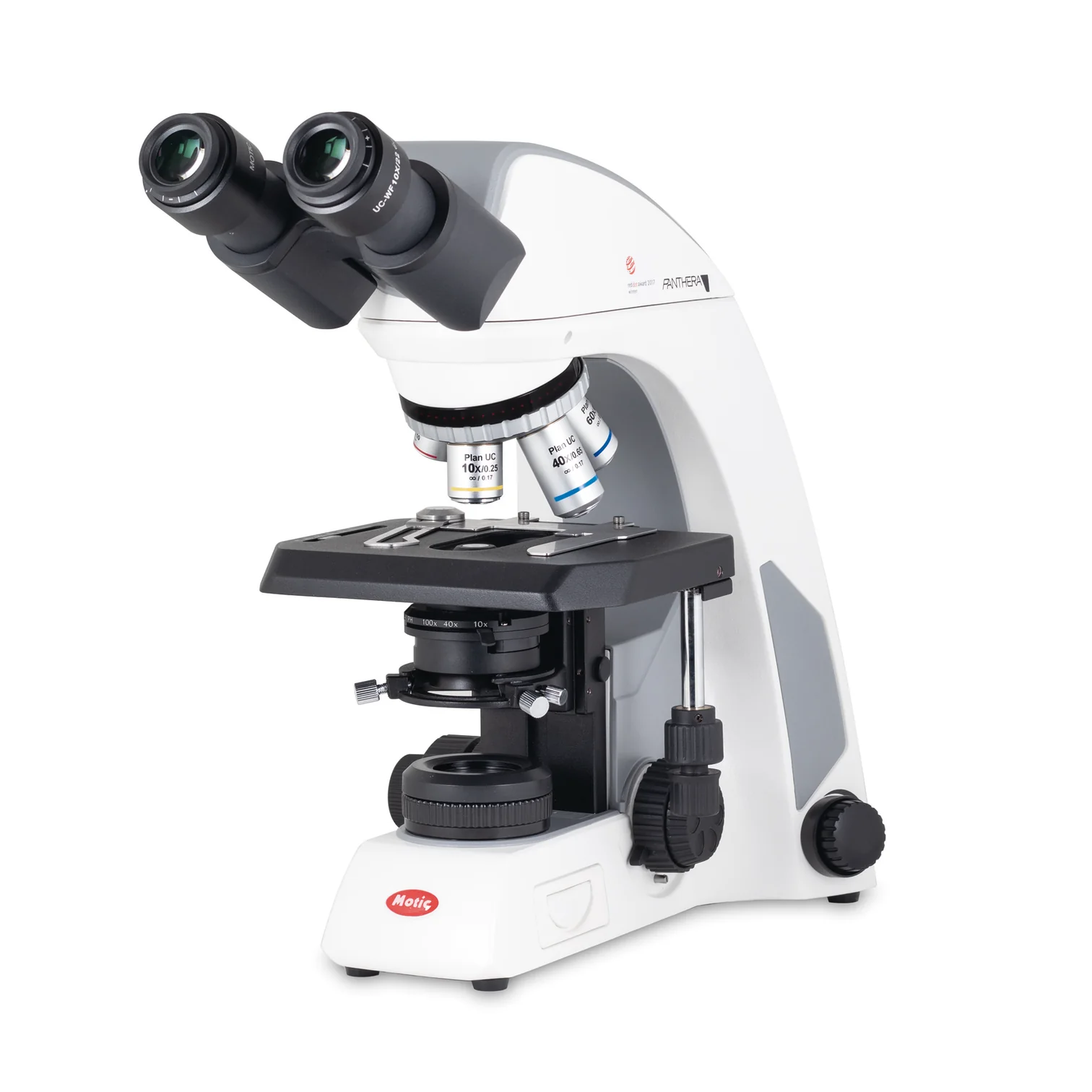

Panthera C2 – Binocular



Binocular head Siedentopf type 25° inclined, 360° swiveling,

UC Widefield high eyepoint eyepiece UC-WF10X/22mm

with diopter adjustment on both eyepieces and rubber eyecups

Reversed coded quintuple nosepiece with light tracer (intelli Light Management)

LED light indicator

CCIS Plan UC objectives 4X, 10X, 40X S, 100X S-oil

Coaxial coarse and fine focusing adjustment with tension adjustment

Built in low position coaxial rackless stage with right hand control

Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot

Koehler illumination with 3W LED and halogen 6V/30W interchangeable with intensity control

USB port for camera power supply

Power supply 100-240V (CE) with Auto on-off, Sleep Mode

Power cord, blue filter, immersion oil (5ml), allen hexagonal key, vinyl dust cover, HAL and LED module, Instruction manual

The Panthera C2 is prepared for Phase contrast with slider or turret condenser, Polarization contrast, and Darkfield. It is even possible to integrate a ready-to-go LED Fluorescence module, allowing to apply this advanced method without the multiple problems associated with mercury bulb usage.

OPTICAL SYSTEM:

Color Corrected Infinity Optical System (CCIS®).

ILLUMINATION:

Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator.

Koehler LED 3W & Quartz halogen 6V/30W with intensity control. Halogen/LED and LED color temperature interchangeability.

FOCUSING:

Coaxial coarse and fine focusing system with tension adjustment.

STAGE:

Compact mechanical stage with built-in low-position rackless coaxial stage control and sample holder.

185x145mm

FRAME:

 282x210x396mm

8.4kg

PACKING:

Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module.
